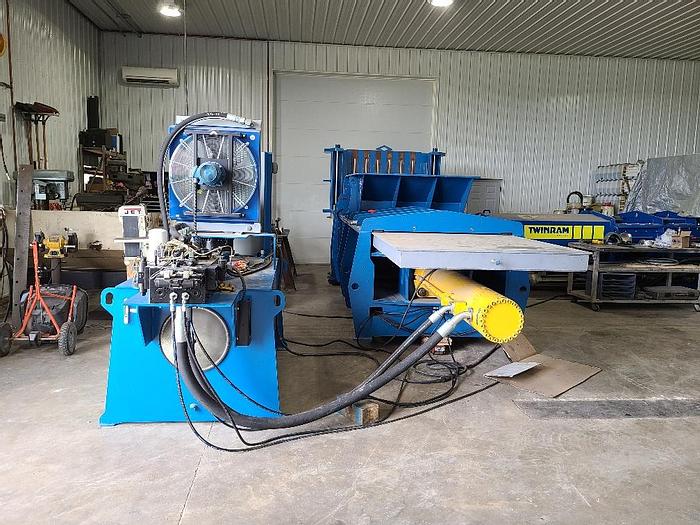

HV10 EXCEL Reconditioned Horizontal Baler

HV10 EXCEL Reconditioned Horizontal Baler

$135,000 (USD)

Available quantity: 1

Hicksville, NY

orCall +1 516 433 2055

Description

Two ram construction in a single ram baler

The EXCEL HV10 has the revolutionary single sheet, interlocking construction found in two-ram balers. The floor and side sheets are all single sheets, cut to fit together for indestructible construction. The HV10 bales newspaper, office paper, magazines, OCC, PET, HDPE, aluminum cans, and tin cans without preconditioning. Its extra heavy duty construction allows the HV-10 to also bale painted aluminum siding, radiators, aluminum extrusion, and insulated wires.


Standard Features Include:

  • Extends to push bale beyond vertical door to allow tie off and ejection of the next bale
  • HV10 are manufactured standard with either left-hand or right-hand hopper controls
  • Industrial hardened Logic Controller
  • Hardox 400 replaceable wear liners
  • 300 gallon hydraulic reservoir with regenerative circuit
  • Tongue and Groove Corrugated Floor
  • Automatic bale sizing system
  • Automatic shear jam correction
  • NEMA 12 rated enclosures and controls on moveable pedastal
  • Castle key safety interlocking system
  • Full bale chamber penetration
  • Standard hopper with inspection window
  • Sandblasted, primed, and painted excel blue for long lasting durability
  • Air to Oil heater exchange
  • UL, CUL Approved


Specifications

ManufacturerEXCEL
ModelHV10
ConditionUsed
Baler Dimensions7' H x 21' 2" L x 7' 4" W
Chamber Dimensions45"L x 59"W x 29" H
Feed Opening55"W x 45"L
Chamber Floor1" Plate
Chamber Sidewalls3/4" Plate
Baler Weight40,000 lbs
Bale Size60"L x 45"W x 30"H
Bale Weight OCC1,500 lbs
Bale Weight Aluminum Cans900 lbs
